Temper H112 6.0mm Aa1100 Aluminum Sheet Coil

Henan Yowo Industrial Co., Ltd

Temper H112 6.0mm Aa1100 Aluminum Sheet Coil

Brand Name : YOWO

Model Number : 1050, 1060, 1100

Certification : CE, SGS

Place of Origin : CHINA

MOQ : 3 tons

Price : USD 1900-3500 per TON

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20000 tons per month

Delivery Time : 15-30 days after receiving deposit or Original LC

Packaging Details : Standard exporting package

Type : aluminum sheet, plate, coil

Alloy : 1050, 1060, 1100

Temper : O - H112

Thickness : 0.1-500mm

Width : 200-2300mm

Length : 500 to 16000mm, or as you requested

Sample : can be provided

Note : Customized service is available

Delivery time : 15-35 days

Contact Now

Aa1100 6mm Thick Aluminum Sheet Price Per Square Meter

Specifications:

Alloy Series Typical Alloy Typical Temper Specifications
Thickness(mm) Width(mm) Length(mm)
1xxx

1050 1060

1070 1100

O H12 H14 H18 H24 H16 H111 0.2-4 500-2800 500-6000
3xxx

3003 3004

3005 3105

O H12 H14 H16 H18 H22 H24 H26 H32 H34 H38 H111 H112 0.2-4 500-2800 500-6000
5xxx 5005 5052 5754 5083 5182 5454 5086 5A02 O H12 H14 H16 H18 H22 H24 H26 H32 H34 H38 H111 H112 0.2-4 500-2800 500-6000

2xxx

6xxx

7xxx

2024 2A12 6061 6082 7050 7075 T4 T6 O T651 0.2-4 500-2800 500-6000

Chemical composition:

Alloy Si Fe Cu Mn Mg Cr Zn Ti OTHERS OTHERS Al
1050 0.25 0.4 0.05 0.05 0.05 0.05 0.03 0.03 99.5
1070 0.2 0.25 0.04 0.03 0.03 0.04 0.03 0.03 99.7
1100 0.95 Si + Fe 0.05-0.20 0.05 0.1 0.05 0.15 99
2024 0.5 0.5 3.8-4.9 0.30-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 Rem.
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.15 Rem.
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 0.25 0.05 0.15 Rem.
3005 0.6 0.7 0.3 1.0-1.5 0.20-0.6 0.1 0.25 0.1 0.05 0.15 Rem.
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 0.25 0.05 0.15 Rem.
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 0.05 0.15 Rem.
5252 0.08 0.1 0.1 0.1 2.2-2.8 0.05 0.03 0.1 Rem.
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.05 0.15 Rem.
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 0.05 0.15 Rem.

Mechanical Property:

Mechanical Property
ALUMINUM Grade Normal Temper Tensile Strength Yield Strength Elongation% Brinell Hardness
ALLOY Temper N/mm² N/mm² Plate Bar HB
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
(2XXX) 2024 O,T4 T4 470 325 20 17 120
Al-Mn 3003 O 110 40 30 37 28
(3XXX) 3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg 5052 O,H112,H H34 260 215 10 12 68
(5XXX) 5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si 6061 O,T4,T6,T8 T6 310 275 12 15 95
(6XXX) 6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg 7003 T5 T5 315 255 15 - 85
(7XXX) 7075 O,T6 T6 570 505 11 9 150

Temper H112 6.0mm Aa1100 Aluminum Sheet Coil

Packaging:

Standard seaworthy package. Wooden pallets with plastics protection for the coil and sheet, or to be packed as your requests.

Loading:

Total quantity from 0-50 tons, can be shipped by containers.

More than 50 tons, can be shipped by bulk vessel.

20 ft container: can load width below 2300mm, length 6000 max.

40 ft container: can load width below 2300mm, length below 12000mm

Temper H112 6.0mm Aa1100 Aluminum Sheet Coil

Temper H112 6.0mm Aa1100 Aluminum Sheet Coil

Temper H112 6.0mm Aa1100 Aluminum Sheet Coil

Product introduction:

It has the characteristics of high plasticity, corrosion resistance, good electrical conductivity and thermal conductivity.

1100 belongs to a product in the pure aluminum plate series, and the chemical composition and mechanical properties of the 1060 series are similar. It is basically replaced by 1060 in current applications.

1100 aluminum alloy is ordinary industrial pure aluminum with 99.0% aluminum content. It cannot be strengthened by heat treatment; the strength is low, but it has good ductility, formability, weldability and corrosion resistance. After anodic oxidation, it can further improve its corrosion resistance while obtaining a beautiful surface.

Various aluminum materials can be produced through pressure processing, but the strength is low. Other process performance is basically the same as 1050A.

Typical use

1100 is usually used for parts that require good forming and processing performance, high corrosion resistance, and do not need high strength, such as food and chemical handling and storage equipment, sheet metal products, hollow hardware processed by drawing cargo spinning, and welding combination keys , Reflectors, nameplates, etc.

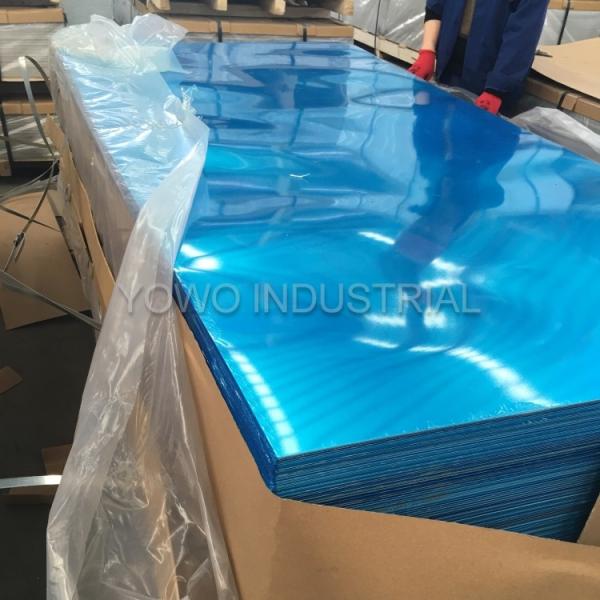

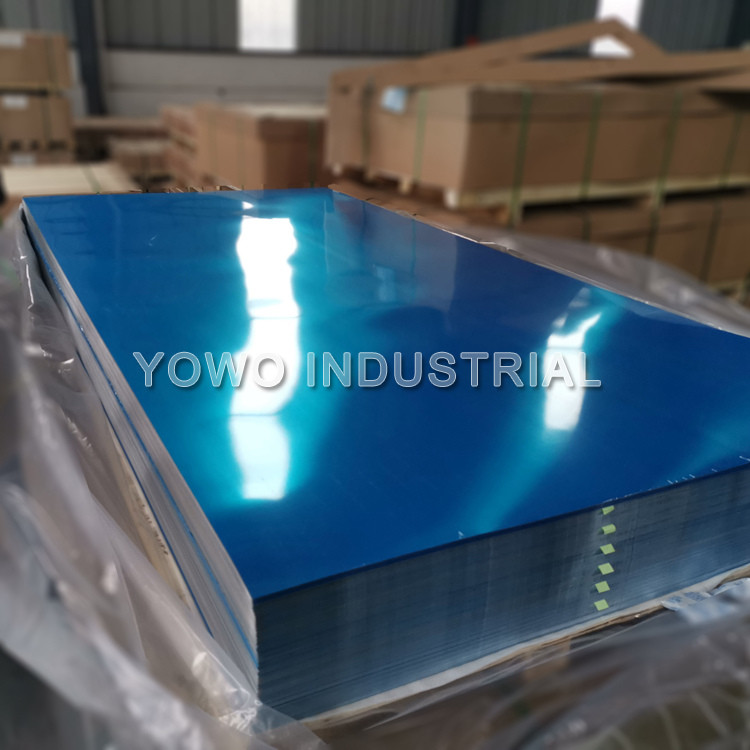

Product pictures display:

Temper H112 6.0mm Aa1100 Aluminum Sheet Coil Temper H112 6.0mm Aa1100 Aluminum Sheet CoilTemper H112 6.0mm Aa1100 Aluminum Sheet Coil Temper H112 6.0mm Aa1100 Aluminum Sheet Coil
